When to Upgrade Kingpin Trucks on Your Motorized Skateboard

Upgrading kingpin trucks on your motorized skateboard becomes necessary when you notice excessive wobble, cracked kingpins, or you're pushing beyond recreational speeds.

Updated 13 Aug 2026 4 min read 5 sections

ONSRA kingpin trucks skateboard trucks — Kingpin trucks$119.00Image from the merchant

You should upgrade the kingpin trucks on your motorized skateboard when you notice excessive steering wobble above 20 mph, visible cracks or bending in the kingpin bolt, or when your riding style shifts from casual cruising to aggressive carving or hill bombing. Most riders on a high performance electric skateboard will face this decision within 500 to 1,000 miles of hard use, though recreational users may ride years without needing new trucks.

Kingpin trucks are the metal T-shaped assemblies that connect your deck to the wheels and allow you to steer. On an electric skateboard, they experience far greater stress than traditional skateboards because of the added motor weight, higher sustained speeds, and the torque delivered through the drivetrain. Knowing when to upgrade can prevent dangerous speed wobbles and unlock better handling.

Signs Your Kingpin Trucks Need Replacing

Kingpin bolt damage: visible threading wear, cracks near the nut, or a bent kingpin that no longer sits straight
Excessive play: the hanger rocks side to side even when bushings are tightened to maximum compression
Persistent speed wobble: unstable steering above 18 to 22 mph that fresh bushings and proper tightening do not fix
Worn pivot cups: the cup where the hanger sits has compressed or torn, creating slop in the steering axis
Cracked baseplate: stress fractures around the kingpin hole or mounting points, common after heavy impacts

If you experience any two of these symptoms simultaneously, replacement is safer than temporary fixes. Check the latest price on quality replacement trucks before the issue worsens.

Performance Reasons to Upgrade Kingpin Trucks

Even without visible damage, upgrading trucks makes sense when your riding demands outgrow your current hardware. Riders moving from a basic motorized skateboard for adults to high-speed runs or technical carving will notice immediate gains from wider, stiffer, or more precisely machined trucks.

When an upgrade improves your ride:

ONSRA motor skateboard electric skateboard — Motor skateboard$95.00Image from the merchant

You regularly exceed 25 mph and need trucks with tighter tolerances and reinforced kingpins
You want to experiment with different wheelbases or truck angles for stability versus agility
Your motor skateboard has hub motors and you need trucks with wider hangers to fit larger wheels
You ride aggressive hills and need trucks with stronger baseplates to handle repeated braking stress
You plan to swap in precision 608rs bearing components and want trucks that match that level of quality

Upgrading to precision-machined kingpin trucks reduces slop, improves response consistency, and often shaves a few ounces of rotating mass. Pairing quality trucks with a reliable electric skateboard remote gives you smoother control at every speed.

Choosing Upgraded Trucks for Your Motorized Skateboard

Not every truck fits every build. We recommend matching truck width to your deck and motor configuration, then prioritizing kingpin strength and baseplate angle.

Consideration	Recreational Riders	Performance / Speed Riders
Truck Width	150 to 180 mm (matches deck width)	180 to 220 mm (wider = more stable)
Kingpin Grade	Standard steel, replaceable	Hardened or titanium kingpin
Baseplate Angle	50° (nimble, carvy)	40 to 45° (stable at speed)
Bushing Compatibility	Standard barrel/cone	Aftermarket precision bushings

ONSRA skateboard bearing 608 — Skateboard bearing 608$34.00Image from the merchant

For riders who also maintain traditional setups, the same skateboard bearing 608 standard applies to both longboard and electric builds, making cross-compatibility simple when you stock spare parts.

If you are building or upgrading a complete setup, grab the code for 4% off sitewide and bundle your trucks with fresh foam grip tape and protective gloves skateboard gear in one order.

How to Know If Bushings or Trucks Are the Problem

Before committing to new trucks, rule out bushings and hardware. Worn bushings cause 70% of the steering issues riders blame on trucks.

Quick diagnostic:

Tighten the kingpin nut until bushings are fully compressed (no gaps between washers and bushings)
Check for side-to-side play by gripping the wheel and rocking it perpendicular to the axle
If play remains with fully tightened bushings, the pivot cup or kingpin bore is worn and the truck assembly should be replaced
If tightening eliminates play but kills steering, you need stiffer bushings, not new trucks

Fresh bushings cost a fraction of new trucks and solve most minor wobble. But if your kingpin bolt itself is damaged or your baseplate shows cracks, no bushing will restore safe performance.

Riders exploring best motorized skateboard recommendations will find that nearly every high-end model ships with reinforced trucks designed for sustained speed, proving that truck quality directly impacts safety and ride feel.

Installing and Maintaining New Kingpin Trucks

Once you have selected replacement trucks, installation takes 15 to 30 minutes with basic skate tools. Remove old trucks, transfer or replace risers and shock pads, mount new trucks using threadlocker on hardware, and re-center your belt or motor alignment if you run a belt-drive motorized skateboard.

Post-install maintenance extends truck life:

Inspect kingpin tightness every 50 miles; threadlocker prevents backing out but check for overtightening
Rotate bushings every 200 miles if you notice uneven compression
Clean pivot cups and apply a thin layer of soap or lithium grease to reduce squeaking and friction
Check baseplate bolts monthly; loose mounting hardware mimics worn trucks and causes premature failure

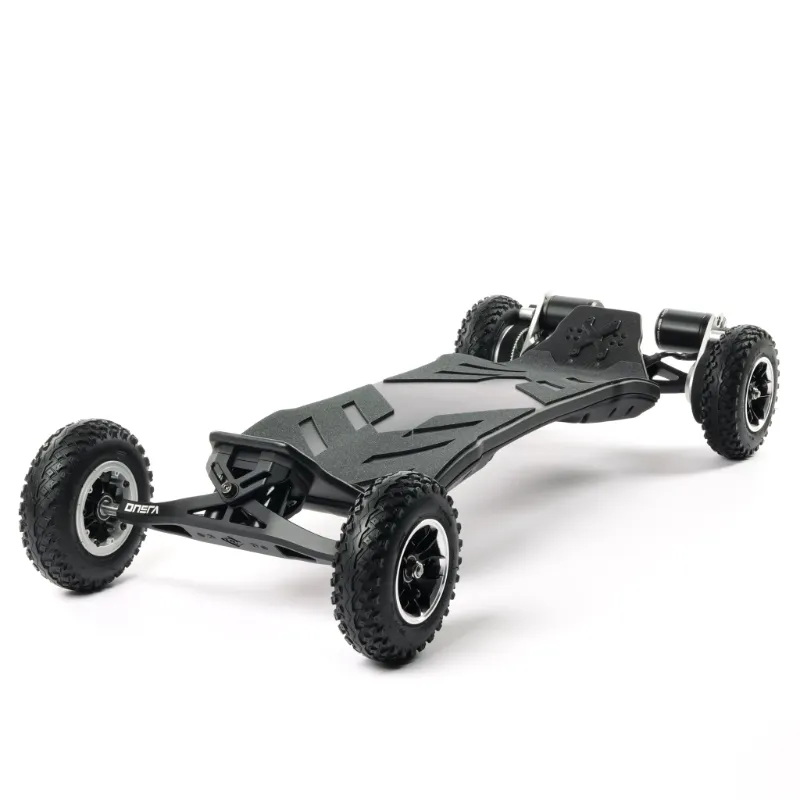

ONSRA velare.cc — Velare.cc$2,590.00Image from the merchant

Pair your fresh trucks with quality bearings like 608rs bearing components to ensure every part of your drivetrain operates smoothly. And if you are upgrading multiple components, check whether bundling items like velare.cc accessories qualifies you for volume discounts when you visit the store page.

Upgrading kingpin trucks is one of the most impactful safety and performance improvements you can make to any electric skateboard with remote control. Treat trucks as a wear item, inspect them regularly, and replace them at the first sign of structural compromise or when your riding outgrows their design limits.

Questions

How often should I replace kingpin trucks on a motorized skateboard?

Most riders replace trucks every 800 to 1,500 miles under normal use, though aggressive riding, frequent hill bombing, or heavy riders may need replacement closer to 500 miles. Inspect kingpins and baseplates every few months for cracks or excessive play.

Can I just replace the kingpin bolt instead of the entire truck?

Yes, if only the kingpin is damaged and the baseplate and hanger remain in good condition. Many trucks use standard kingpin bolts that thread into the baseplate, making replacement straightforward. However, if the threading in the baseplate is stripped, you need a full truck replacement.

Will wider trucks make my electric skateboard more stable?

Wider trucks increase stability at high speed by spreading weight over a larger footprint, but they reduce turning agility. For speed-focused riding above 25 mph, choose trucks 10 to 20 mm wider than your deck. For carving and city cruising, match truck width closely to deck width.

Do I need different trucks for hub motors versus belt-drive boards?

Hub motor boards often need trucks with wider hangers to accommodate the larger motor-wheel assembly, while belt-drive boards require clearance for the pulley and belt. Always verify hanger width and motor mount compatibility before purchasing replacement trucks.

What causes speed wobble on a high performance electric skateboard?

Speed wobble stems from loose or worn trucks, soft bushings, improper weight distribution, or mismatched front and rear truck stiffness. Tighten kingpins, upgrade to harder bushings, lower your baseplate angle, or replace worn trucks to eliminate wobble above 20 mph.

Can I use traditional longboard trucks on an electric skateboard?

Standard longboard trucks work on lighter electric builds under 20 mph, but most lack the reinforced kingpins and baseplates needed for sustained motor torque and high-speed stability. Purpose-built electric skateboard trucks offer better durability and safety for motorized use.
