How to Install a Frameless Shower Door Without Professional Help

Installing a frameless shower door is a manageable DIY project that saves you hundreds in labor costs when you follow the right steps.

Updated 21 Aug 2026 4 min read 6 sections

A frameless shower door transforms any bathroom into a modern, spa-like space, and you can install one yourself without hiring a contractor. With the right tools and careful measurements, most homeowners complete the job in 4 to 6 hours while saving $200 to $400 in professional installation fees.

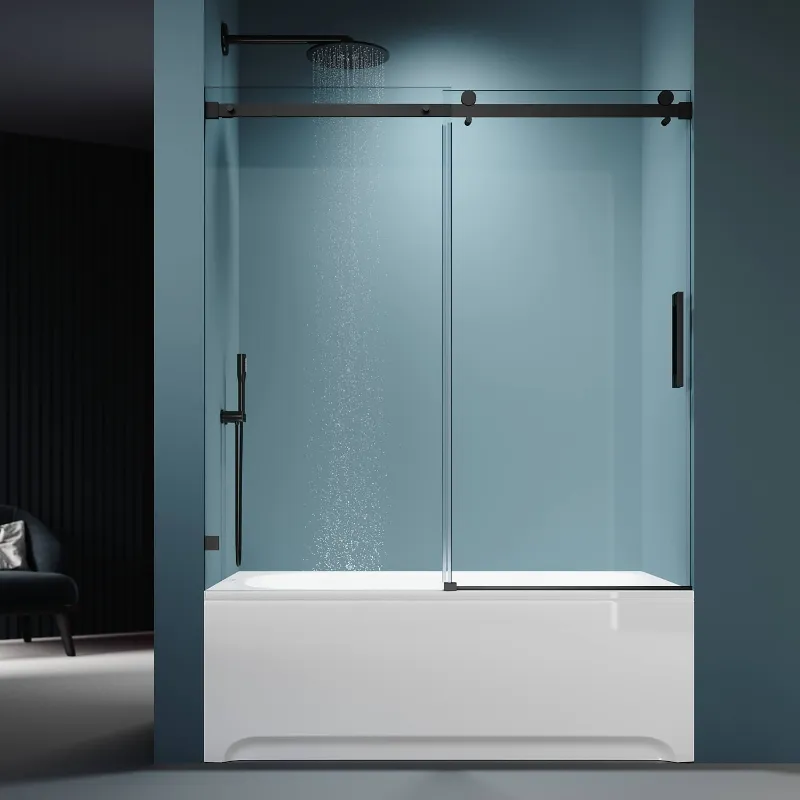

SUNNY SHOWER bathtub shower doors — Bathtub shower doors$339.59Image from the merchant

Whether you’re upgrading bathtub shower doors or installing sliding glass shower doors, this guide walks you through every step.

Tools and Materials You Need Before Starting

Gather everything before you begin so you won’t need to pause mid-installation. Frameless shower door installation requires precision, and having the right equipment on hand makes the process smoother.

Essential tools:

Drill with masonry and glass bits
Level (24-inch minimum)
Measuring tape
Silicone sealant and caulking gun
Pencil or marker
Safety glasses
Adjustable wrench

SUNNY SHOWER shower doors for bathroom enclosure — Shower doors$329.99Image from the merchant

Included hardware: Most shower doors ship with wall anchors, screws, hinges or track systems, handles, and rubber seals. Inspect your package before starting and contact the manufacturer if anything is missing. Check the latest price and grab our code for 10% off your order.

Optional but helpful:

Stud finder
Masking tape (to protect glass edges)
Assistant for holding glass panels

Measuring Your Shower Opening Accurately

Incorrect measurements cause 70% of DIY shower door problems. Measure three times at different heights because walls are rarely perfectly plumb.

For alcove showers:

SUNNY SHOWER shower pan base — Shower pan$279.99Image from the merchant

Measure the width at the top, middle, and bottom of the opening
Use the smallest measurement as your door width
Measure height from the shower pan lip to the desired top point
Check that corners are square using the 3-4-5 triangle method

For corner installations: A corner shower kit requires measuring both wall spans and verifying the angle between them. Most manufacturers design their hardware to accommodate 88 to 92-degree angles, but confirm your specific model’s tolerance.

Frameless vs. semi frameless considerations: True frameless designs require more precise measurements than semi frameless shower door models because they lack the adjustability of a full frame. Most SUNNY SHOWER models include adjustment brackets that compensate for up to 1 inch of variance.

Step-by-Step Frameless Shower Door Installation

1. Mark your drill points

Hold the wall channel or hinge mounting plates against the wall at the correct height. Use your level to ensure they’re perfectly vertical, then mark each screw hole with a pencil. For tile walls, place masking tape over drill points to prevent bit slippage.

2. Drill anchor holes

Drill slowly through tile using a carbide or diamond bit with light pressure. Switch to a masonry bit for the wall behind. Make holes slightly deeper than your anchor length. Insert wall anchors flush with the surface.

3. Mount wall hardware

Attach hinges, channels, or U-brackets to the wall using the provided screws. Verify everything is level before tightening fully. This hardware supports the entire door weight, so ensure anchors sit firmly in the wall.

4. Attach glass panels

SUNNY SHOWER sliding glass doors — Sliding glass doors$329.99Image from the merchant

With an assistant, lift the door panel and align the hinge holes or track slots. Insert hinge pins or slide the panel into the channel system. Some sliding glass doors require installing the stationary panel first, then the sliding panel.

5. Install handles and seals

Attach handles according to manufacturer specs, being careful not to overtighten (this can crack glass). Apply a shower door bottom seal strip along the lower edge to prevent water escape.

6. Apply silicone

Run a thin bead of clear silicone along all wall-to-glass and glass-to-threshold joints. Smooth with a wet finger within 5 minutes. This creates your waterproof barrier.

Common Installation Mistakes and How to Avoid Them

Overtightening hardware: Glass is strong but can crack under uneven pressure. Tighten screws until snug, then add only a quarter turn. If you feel resistance, stop.

Skipping the level check: A door that’s off by even 2 degrees will swing open or closed on its own. Check level at every mounting point, not just once at the beginning.

Using the wrong anchors: Drywall anchors fail in wet environments. Use corrosion-resistant metal anchors rated for your wall type. Hitting a stud is ideal but not always possible.

Forgetting expansion gaps: Glass expands slightly with temperature changes. Leave a 1/8-inch gap between glass and fixed surfaces, then seal with flexible silicone.

Frameless Shower Doors vs Framed: Installation Differences

Frameless shower doors vs framed models differ significantly in installation complexity. Framed doors mount to a full metal frame that hides minor wall irregularities, while frameless designs attach directly to walls and require more precision.

Feature	Frameless	Framed
Installation time	4-6 hours	2-4 hours
Wall precision required	High	Medium
Weight	Heavier (thicker glass)	Lighter
Adjustment range	Limited	Flexible

Frameless options offer superior aesthetics and easier cleaning since there are no metal tracks where soap scum accumulates. Frameless sliding shower doors have become increasingly popular for exactly these reasons.

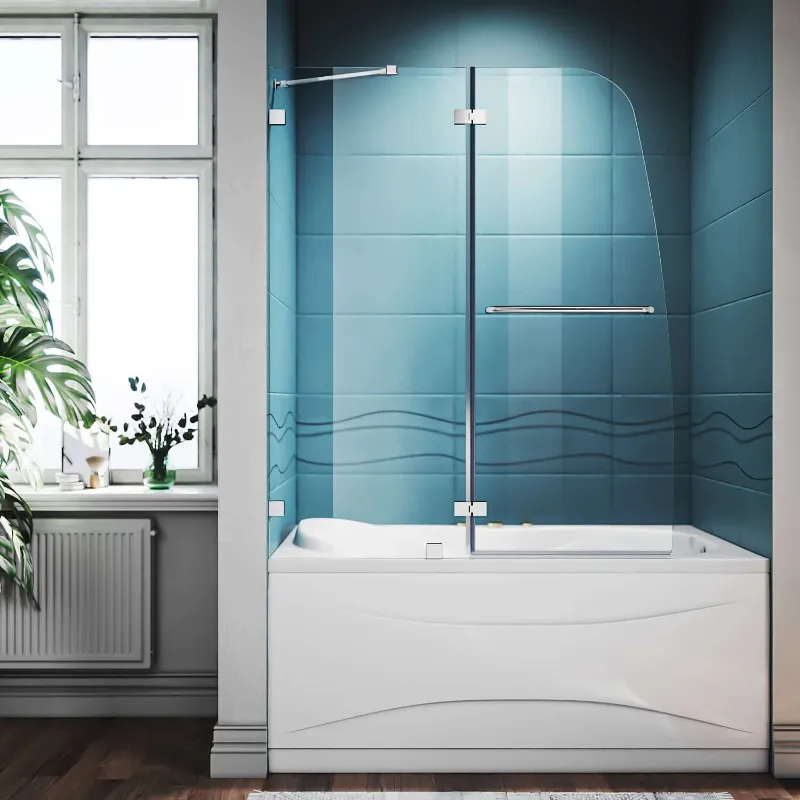

SUNNY SHOWER shower door for tub shower — Shower door for tub shower$349.99Image from the merchant

If you’re installing a shower door for tub shower rather than a standard alcove, frameless models work beautifully but require a perfectly level tub rim. Any slope will cause alignment issues.

Maintenance After Installation

Wait 24 hours before using your shower to let silicone cure completely. After that, frameless doors require minimal maintenance.

Weekly care:

Squeegee glass after each use with a shower squeegee
Wipe down hinges and handles to prevent mineral buildup
Check that seals remain flush against glass

Monthly tasks:

Inspect silicone joints for gaps or cracking
Clean glass with vinegar solution or commercial glass cleaner
Tighten any loose screws (but don’t overtighten)

When to call a professional: If your door doesn’t close properly after installation, glass has visible stress cracks, or water leaks persist after resealing, contact a professional. Some installation errors require complete remounting to fix safely.

For current pricing on all SUNNY SHOWER products and to grab the code for 10% off, visit our coupon page before starting your project.

Questions

How long does it take to install a frameless shower door yourself?

Most DIYers complete a frameless shower door installation in 4 to 6 hours, including prep and cleanup. Your first installation may take longer as you familiarize yourself with the hardware, while experienced installers often finish in 3 hours.

Do I need special tools to drill through shower tile?

Yes, you need a carbide-tipped or diamond drill bit designed for tile and glass. Regular drill bits will crack tile and dull quickly. Drill at low speed with light pressure and use water or tape to keep the bit cool.

Can I install a frameless shower door if my walls aren't perfectly straight?

Minor wall irregularities up to 1 inch can be accommodated by most frameless shower door adjustment brackets. Beyond that, you may need to shim the mounting hardware or consider a semi-frameless model that offers more flexibility.

What's the difference between frameless and semi-frameless shower doors?

Frameless doors have no metal frame around the glass panels, only hinges and minimal hardware. Semi-frameless doors have a frame on some edges, typically around the door panel, which makes installation more forgiving and slightly reduces cost.

How do I prevent my frameless shower door from leaking?

Proper sealing is critical. Apply silicone to all joints between glass and walls, install a bottom seal strip along the threshold, and ensure your door is perfectly level so water doesn't run toward the opening. Allow silicone to cure for 24 hours before use.

Can I install sliding glass shower doors by myself?

Yes, but sliding doors are heavier than hinged models and benefit from having a second person. The glass panels slide into overhead and bottom tracks, which must be perfectly level. Plan for 5 to 7 hours if working alone.
